Drophead1
Rolls-Royce Phantom Drophead Coupé
Rolls-Royce
aka Phantom Drophead Coupé
Production 2007–present
Class Ultra Luxury
Body Style 2-door, 4-seat Convertible
Length 220.8 in
Width 78.2 in
Height 62.2 in
Wheelbase 130.7 in
Weight 5776 lb (curb)
6724 lb (gross)
Transmission ZF 6HP32 6-speed Automatic
Engine 6.75 litre (6749 cc) V12
Power 453 hp @ 5350 rpm
531 lb-ft @ 3500 rpm
Similar Bentley Azure
Bentley Havana
Designer Marek Djordjevic
Ian Cameron

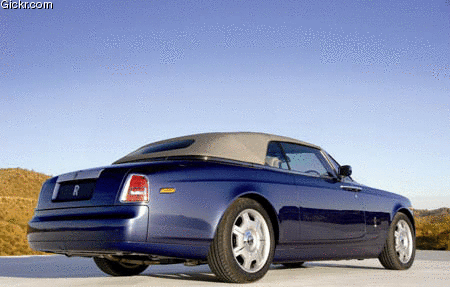

The Rolls-Royce Phantom Drophead Coupé is a convertible made by Rolls-Royce and officially debuted at the 2007 Detroit Motor Show on January the 7th. The platform is based on the Rolls-Royce Phantom and has styling heavily derived from the 101EX concept car unveiled to celebrate the company's centennial in 2003. Rolls-Royce has posted official promotional pictures of the car on the internet as of December 27, 2006 ahead of of the NAIAS unveiling.

ExteriorEdit

The exterior remains faithful to the marine-nautical theme of the 100EX. The two-door four-seat droptop features rearward opening suicide doors and a two-tone color scheme that delineates between the upper and lower bodywork and frames the Teak wood paneling of the droptop's tonneau cover. Unlike the 2003 concept car, however, the production unit eschews the EX's bare, brushed aluminium motif in favor of painted metal.

The front fascia takes its cues from the 101EX but with the crucial difference of the middle bodywork/raised bonnet/grille assemblage terminating midway down the face rather than continuing downwards and bisecting the front bumper. The headlights are also taken straight out of the 100/101EX exercise and similarly similar to the Phantom's. The deepset rectangular high beams are an LED unit while the round "faux-foglamp" driving lights are projector-style xenons.

All in all, the car continues Rolls-Royce's current extravagant and downright decadent 1930's inspired/cold 21st century techno-modern design language began with the Phantom.

InteriorEdit

The interior is a modern avant-garde reinterpretation of the traditional English Gentlemen's Clubroom with a wide, varied pluralistic palette of design philosophies ranging from minimalism to Art Deco. Perhaps the car's main design showcase is the yachting-inspired wood veneering that wraps around the 8/9ths top portion of the cabin from suicide door to suicide door and terminating in a beautifully crafted droptop tonneau cover, hand-finished in exquisite nautical-grade Teak wood paneling sandwiched between an interior band of contrasting hardwood and the bare aluminium motif of the car's upper exterior bodywork. Similarly with the 100 and 101EX, the dashboard and the steering wheel are straight out of the Phantom.

Technical SpecificationsEdit

Rrdropheadanimation

Color and trimEdit

Exterior colours:

  • Metropolitan Blue
  • Admiral Blue
  • Duck Egg Blue
  • Jubilee Silver
  • English White
  • Semaphore Yellow
  • Ensign Red
  • Woodland Green
  • Diamond Black

Hood colours:

  • Silver
  • Black
  • Beige
  • Deep Red
  • Deep Green
  • Navy Blue

Interior leather:

  • Crème Light
  • Black
  • Fleet Blue
  • Moccasin
  • Pine Green
  • Roseleaf
  • Fawn Brown
  • Dark Spice
  • Consort Red
  • Signal Red

Interior veneers:

  • Elm Cluster
  • Piano Black
  • Brown Oak
  • Ash Burr
  • Mahogany Flare
  • Rosewood World version

Technical Specifications: WorldEdit

Dimensions

  • Number of doors / seats 2 / 4
  • Vehicle length 5609 mm / 220.8 in
  • Vehicle width 1987 mm / 78.2 in
  • Vehicle height (unladen) 1581 mm / 62.2 in
  • Wheelbase 3320 mm / 130.7 in
  • Turning circle 13.1 m / 43.0 ft
  • Track, front 1687 mm / 66.4 in
  • Track, rear 1671 mm / 65.8 in
  • Width at shoulder height, front 1491 mm / 58.7 in
  • Width at shoulder height, rear 1298 mm / 51.1 in
  • Elbow room, front 1562 mm / 61.5 in
  • Elbow room, rear 1266 mm / 49.8 in
  • Head room, front 980 mm / 38.6 in
  • Head room, rear 943 mm / 37.1 in
  • Boot volume (DIN) 315 ltr / 11.1 cu ft
  • Fuel tank capacity 80 ltr / 17.6 Imp gal

Weight

  • Unladen weight (DIN) 2620 kg / 5776 lb
  • Axle load ratio, rear (unladen) 51.4 %
  • Gross vehicle weight 3050 kg / 6724 lb
  • Payload 430 kg / 948 lb
  • Axle load limit, front 1425 kg / 3142 lb
  • Axle load limit, rear 1800 kg / 3968 lb

Engine & transmission

  • Engine / cylinders / valves V / 12 / 48
  • Fuel management Direct injection
  • Displacement 6749 cc / 411.8 cu in
  • Stroke 84.6 mm / 3.33 in
  • Bore 92.0 mm / 3.62 in
  • Power output @ engine speed 453 bhp / 460 PS (DIN) / 338 kW @ 5350 rpm
  • Max torque @ engine speed 720 Nm / 531 lb ft @ 3500 rpm
  • Compression ratio / fuel type 11:1 / premium unleaded
  • Transmission type ZF 6HP32
  • Transmission ratios:
  • 1st / 2nd / 3rd / 4.171 / 2.340 / 1.521 / 4th / 5th / 6th 1.143 / 0.867 / 0.691
  • Reverse 3.403
  • Final-drive ratio 3.460

Steering & brakes

  • Steering type Rack & pinion, speed-sensitive variable-rate power assistance
  • Brakes, front / diameter Ventilated disc / 374 mm / 14.7 in
  • Brakes, rear / diameter Ventilated disc / 370 mm / 14.6 in

Aerodynamics

  • Drag Cd 0.37
  • Drag Cd x A 1.004 m2 / 10.8 ft2

Performance

  • Top speed 149 mph / 240 km/h (governed)
  • Acceleration 0-100 km/h 5.9 sec

Fuel consumption

  • Urban To be confirmed
  • Extra urban To be confirmed
  • Combined / range To be confirmed
  • CO2 emissions To be confirmed

Wheels (standard PAX alloy)

  • Tyre, front & rear Michelin PAX 265/790 R540 A 111W
  • Wheel rim, front & rear PAX 265 x 540 A ALU

Wheels (21 in alloy)

  • Tyre, front Goodyear EMT 255/50 R21 106W
  • Wheel size, front 8 in x 21 in
  • Tyre, rear Goodyear EMT 285/45 R21 109W
  • Wheel size, rear 9.5 in x 21 in

Note: The engine is designed for octane grade 98 fuel; however, it may be run on fuel with a minimum octane grade of 91.

Technical Specifications: USEdit

Dimensions

  • Number of doors / seats 2 / 4
  • Vehicle length 5609 mm / 220.8 in
  • Vehicle width 1987 mm / 78.2 in
  • Vehicle height (unladen) 1581 mm / 62.2 in
  • Wheelbase 3320 mm / 130.7 in
  • Turning circle 13.1 m / 43.0 ft
  • Track, front 1687 mm / 66.4 in
  • Track, rear 1671 mm / 65.8 in
  • Width at shoulder height, front 1491 mm / 58.7 in
  • Width at shoulder height, rear 1298 mm / 51.1 in
  • Elbow room, front 1562 mm / 61.5 in
  • Elbow room, rear 1266 mm / 49.8 in
  • Head room, front 980 mm / 38.6 in
  • Head room, rear 943 mm / 37.1 in
  • Trunk volume (SAE) To be confirmed
  • Fuel tank capacity 80 ltr / 21.1 US gal

Weight

  • Curb weight 2620 kg / 5776 lb
  • Axle load ratio, rear (unladen) 51.4 %
  • Gross vehicle weight 3050 kg / 6724 lb
  • Payload 430 kg / 948 lb
  • Axle load limit, front 1425 kg / 3142 lb
  • Axle load limit, rear 1800 kg / 3968 lb

Engine & transmission

  • Engine / cylinders / valves V / 12 / 48
  • Fuel management Direct injection
  • Displacement 6749 cc / 411.8 cu in
  • Stroke 84.6 mm / 3.33 in
  • Bore 92.0 mm / 3.62 in
  • Power output @ engine speed 453 bhp / 460 PS (DIN) / 338 kW @ 5350 rpm
  • Max torque @ engine speed 720 Nm / 531 lb ft @ 3500 rpm
  • Compression ratio / fuel type 11:1 / premium unleaded
  • Transmission type ZF 6HP32
  • Transmission ratios:
  • 1st / 2nd / 3rd / 4.171 / 2.340 / 1.521 / 4th / 5th / 6th / 1.143 / 0.867 / 0.691
  • Reverse 3.403
  • Final-drive ratio 3.460

Steering & brakes

  • Steering type Rack & pinion, speed-sensitive variable-rate power assistance
  • Brakes, front / diameter Ventilated disc / 374 mm / 14.7 in
  • Brakes, rear / diameter Ventilated disc / 370 mm / 14.6 in

Aerodynamics

  • Drag Cd 0.37
  • Drag Cd x A 1.004 m2 / 10.8 ft

Performance

  • Top speed 149 mph / 240 km/h (governed)
  • Acceleration 0-60 mph 5.7 sec

Fuel consumption

  • City To be confirmed
  • Highway To be confirmed
  • Combined / range To be confirmed
  • CO2 emissions To be confirmed

Wheels (standard PAX alloy)4/5

  • Tire, front & rear Michelin PAX 265/790 R540 A 111W
  • Wheel rim, front & rear PAX 265 x 540 A ALU

Wheels (21 in alloy)5/6

  • Tire, front Goodyear EMT 255/50 R21 106W
  • Wheel size, front 8 in x 21 in
  • Tire, rear Goodyear EMT 285/45 R21 109W
  • Wheel size, rear 9.5 in x 21 in
