Opel Ascona

11,083pages on
this wiki
Add New Page
Talk0 Share
Opel Ascona A
Opel Ascona
Opel
aka {{{aka (Type here, not up there)}}}
Production 1970-1988
Class large family car
Body Style

2-door saloon

4-door saloon

5-door hatchback

Length

4,366 mm (171.9 in) (sedan)

4,264 mm (167.9 in (hatback)

Width 1,668 mm (65.7 in)
Height

1,395 mm (54.9in( (sedan)

1,385 mm (54.5 in) (hatchback)

Wheelbase 2,574 mm (101.3 in)
Weight 920–1,090 kg (2,028–2,403 lb)
Transmission

4/5-speed manual

3-speed automatic

Engine {{{engine}}}
Power {{{Horsepower and Torque rating}}}
Similar {{{similar (competition)}}}
Designer {{{Designer (lead designer if it was a team effort)}}}

The Opel Ascona is a large family car produced by the German automaker Opel from 1970 to 1988. It was produced in three separate generations from 1970 to 1988, beginning with rear-wheel drive and ending up as a front-wheel drive J-car derivative. In motorsport, the Ascona 400 rally car driven by Walter Röhrlwon the World Rally Championship drivers' title in the 1982 season.

The Ascona took its name from the lakeside resort of that name in Ticino,Switzerland, and already in the 1950s a special edition of the Opel Rekord P1 was sold as an Opel Ascona in Switzerland, where the name was again used in 1968 for a locally adapted version of the Opel Kadett B into which the manufacturers had persuaded a 1.7-litre engine borrowed from the largerRekord model of the time. The Opel Ascona A launched in 1970 and sold across Europe was, however, the first mainstream Opel model to carry the name. The Ascona was introduced in September 1970 and ended production in August 1988, to be replaced by the Opel Vectra A.

See Autopedia's comprehensive <MODEL> Review.

Recent ChangesEdit

Mention any minor facelifts or major changes made to the vehicle here.

Styles and Major OptionsEdit

Certain vehicles come in different trim levels or body styles. Features and major options should be mentioned here.

PricingEdit

Add more fields as necessary.

MODEL Trims

Trim1

Trim2

Trim3

Trim4

MSRP

$Price1

$Price2

$Price3

$Price4

Invoice

$Price1

$Price2

$Price3

$Price4

Gas MileageEdit

Add more fields as necessary.

As seen on the FuelEconomy.gov website, the City/Highway MPG averages are as follows:

Trim

Trim1

Trim2

Trim3

Trim4

MPG

c/h

c/h

c/h

c/h

ReliabilityEdit

Warranty options and scheduled maintainence information should be mentioned here.

SafetyEdit

This section should reference points on safety ratings and features of the vehicle.

PhotosEdit

Add Photos of the vehicle here.

Please make sure not to use copyrighted photos.

ColorsEdit

List the colors that the particular <MODEL> is offered in.

Main CompetitorsEdit

Create links to other <MAKE> <MODEL> pages in this section.

Hybrid ModelsEdit

N/A

Unique AttributesEdit

If there are any features of this vehicle that sets it apart from other vehicles in its class, then mention those unique attributes here.

Resale ValuesEdit

Add more fields as necessary.

<MODEL> Year

Year X

Year X-2

Year X-3

Year X-4

Resale Value

$

$

$

$

CriticismsEdit

Please make sure to keep critiques in a third-person point of view. If using criticisms from a reputable automotive source, then please make sure to cite the quote.

GenerationsEdit

Fill in as many as appropriate. Add more if necessary and pictures wherever applicable.

Please make sure NOT to use copyrighted pictures.

Third generation (1982–1988)Edit

The Ascona C was launched in August 1981 as part of General Motors' J-car project. This was Opel's second front-wheel drive car since the introduction of the Kadett D in 1979. This car was manufactured in Rüsselsheim, Germany,Antwerp, Belgium and Luton, England, and was sold in the UK under the nameVauxhall Cavalier and Chevrolet Monza in Latin America. The Cavalier Coupé was phased out, but the Opel Manta was retained in the UK (the last car to be badged as an Opel in the UK before the brand was phased out there in 1988). There were no longer sheet metal differences between Opel and Vauxhall models after 1982. The Ascona C won the "Goldene Lenkrad" at the end of 1981 and was West Germany's biggest selling car. The new Ascona no longer had the sporty character of its predecessors, being a more unadulterated family car which was considerably more space efficient than earlier models.

It was narrowly beaten to the European Car of the Year award by the Renault 9in 1982. It took 27 another years before its successor model, the Opel Insignia, won 2009 European Car of the Year by only 1 point from the Second placedFord Fiesta. The Ascona C underwent two notable facelifts during its term of production.

The range added an option of a five-door hatchback bodystyle, named CC in a few markets. The five-door model was shorter than the saloons, with a marginally smaller luggage compartment and 5 cm (2.0 in) less head space in the backseat.[10] All engines were now SOHC crossflow designs with abreakerless ignition system and hydraulic tappets.[9] The base model was the 1.3 L introduced in 1978 in the Ascona B, with 60 PS (44 kW), followed by a 1.6 L with 75 PS (55 kW). "S" versions with higher compression ratio had power increased by as much as twenty percent. The top of the line was the sporty GTE model, with electronic fuel injection, pushing power to 130 PS (96 kW) in the last two model years. Diesel power came from an Isuzu-developed block, with 1.6 litres. Catalytic converters were optional in the larger petrol units starting from 1986.

The Ascona C was also assembled in South Africa, where it was sold byGeneral Motors South Africa, replacing the Chevrolet Ascona which was based on the Ascona B. It was dropped in 1986 and replaced by a sedan version of the Kadett E called the Opel Monza.

As before, there was no estate car version of the Ascona, although Vauxhall in the UK brought in the rear ends of the Holden Camira wagon (estate car) and adapted them to the Cavalier. Opel continued to use the Ascona nameplate until the Vectra was launched in 1988, while the Cavalier name was retained by Vauxhall until 1995.

Timeline
  • September 1981 – Introduction of the Ascona C as the successor for the Ascona B. This, the original version, is usually referred to as "C1" to distinguish it from the later, facelifted versions. Available bodystyles for the Ascona included 2- and 4-door Sedans and a 5-door Hatchback (the CC). Initial engine choice included the 1.3N (60 PS), 1.3S (75 PS), 1.6N (75 PS) and 1.6S (90 PS), all of which had a four-speed gearbox or optional three-speed automatic transmission for all except the 1.3 N. Trim variations included BaseLBerlinaand SR.
  • 1982 – Introduction of the Ascona Diesel with a 1.6 (55 PS) engine, available with a five-speed gearbox. Introduction of the Ascona CD with higher level of equipment. A new 1.8E engine with LE-Jetronic (115 PS) and five-speed gearbox is introduced in September. Optional power steering, electric windows, electric mirrors and computer available at extra cost. The five-speed transmission was now also made available in the 1.6S.
  • 1983 – Modified ignition switch and door locks. Improvements made to water pump, valve seals and radiator hoses. Aftermarket convertibles were now available from Keinath[14] (later also by Hammond & Thiede). Optional central locking and heated mirrors. Optional Sports suspension available for SR and 1.8 E engine. Automatically adjustable rear brakes now standard. As of May, the five-speed transmission was available in all models.
  • 1984 – C2: All models have facelift with new CD-style radiator grille, new wheel trims, new front seat mountings, modified center console, remote-adjustable door mirrors and height-adjustable steering wheel. 1.3S engine now has new start-stop system. Improved clutch damping and headlight seals. Model names also changed: Base becomes LS, L becomes GL, Berlina becomes GLS, and SR becomes GT.
  • 1985 – 1.8i engine with three-way catalyst introduced (100 PS). One-way catalysts available for all engines. Modified clutch lining and door seals.
  • 1986 – C3: All models have facelift, this time with clear front indicator lenses, dark taillight lenses, colour-keyed radiator grille, air vent, and front spoiler. GT now has front and rear spoilers. New engines were also available: 1.6i and 2.0iwith three-way catalysts. 1.6 has Multec-central Injection system and 75 PS (55 kW), while 2.0 has Bosch Motronic Injection system and 115 PS (85 kW), with or without catalyst (20NE/C20NE).
  • 1987 – Non-catalyst 2.0i replaced by 130 PS (96 kW) 20SEH version, only available with GT trim.
  • 1988 – The GL model changes name to "Touring" (already used in 1986 for the last of the C2 Asconas). August marks the end of production for the Ascona C, replaced by the Opel Vectra A.
Models

The following versions of the Ascona C were available, all with inline fours. Data is for the German market. There may have been minor differences in various export market models:

Engine Cat. Power Torque Transmission Top speed Fueltype Equipment levels Years
PS kW hp @ rpm N·m lb·ft @ rpm km/h mph before facelift after facelift
1.3N 1297 cc 60 44 59 5800 94 69 3400–3800 4MT 150 93 normal Std/J/Luxus/Berlina LS/GL/GLS 81–86
1.3S 1297 cc 75 55 74 5800 101 74 3800–4600 4MT, 3AT 160 99 super Std/J/Luxus/Berlina LS/GL/GLS 81–86
1.6N 1598 cc 75 55 74 5600 123 91 3000–4000 4/5MT, 3AT 160 99 normal Std/J/Luxus/Berlina LS/GL/Touring/GLS 81–88
1.6E 1598 cc 75 55 74 5200 121 89 3400 4/5MT, 3AT 160 99 unleaded LS/GL/Touring/GLS 86–88
1.6S 1598 cc 90 66 89 5800 126 93 3800–4200 4/5MT, 3AT 170 106 super Std/J/Luxus/Berl./SR LS/GL/GLS/GT/CD 81–86
82 60 81 5400 130 96 2600 165 103 LS/GL/GLS 86–87[20]
1.8N 1796 cc 84 62 83 5400 143 105 2600 4/5MT, 3AT 168 104 normal LS/GL/Touring/GLS/GT 87–88
1.8E 1796 cc 115 85 113 5800 151 111 4800 5MT, 3AT 187 116 super Luxus/Berl./SRE/CD GL/Touring/GLS/GT/CD 82–86
100 74 99 5800 140 100 3000 180 112 LS/GL/GLS/GT/CD 85–86[21]
2.0E 1998 cc 115 85 113 5800 175 129 3000 5MT, 3AT 187 116 super GL/Touring/GLS/GT 86–87
5400 170 130 sup. unld. LS/GL/Touring/GLS/GT 86–88
130 96 128 5600 180 130 4600 5MT 193 120 GT 87–88
1.6D 1598 cc 54 40 53 4600 96 71 2400 4/5MT, 3AT 143 89 diesel Std/J/Luxus/Berl./CD LS/GL/Touring/GLS/CD 82–88

Chevrolet Monza Edit

In Brazil, the Ascona C was sold from May 1982 until 1996 as the Chevrolet Monza.  It was originally only available as a three-door hatchback, a body style unique to Latin America. However, two or four-door sedans appeared in March 1983. Originally it was available with either a 1.6 or a 1.8 engine with 75 or 84 PS (55 or 62 kW). These were changed to more powerful 1.8 and 2.0s in 1986. In 1989 the slow-selling liftback was discontinued, leaving only the two- and four-door three-box sedans. The Monza received a number of facelifts, the last one bringing its looks in line with those of current European GM products, with new fenders front and rear to accommodate new head and taillights.

Diesel versions were available for export markets, most notably Uruguay andArgentina, powered by Isuzu's 4FC1 engine.

In Colombia the sedan version was sold from 1987 to 1992 as the Monza Classic, two version were available: a five-speed manual 'Sport', and a DeLuxe equipped with a four-speed automatic transmission. In Venezuela it was sold from 1985 to 1990. Originally it was equipped with a carburetted 1.8-litre engine, but this was later replaced with a fuel injected 2-litre unit.

The Chevrolet Monza name is also used on the Opel GT, Saturn Sky, Daewoo G2X and Pontiac Solstice.

Second generation (1976-1981)Edit

The second generation Opel Ascona B was presented in August 1975 at the Frankfurt Motor Show. It was available as a two or four-door saloon. There were related two and three-door coupé models in the Opel Manta range. There was no estate body available.

The Ascona B retained the same engine range as its predecessor, versions with higher compression ratio and needing 98 octane petrol, dubbed S, were available alongside the 90 octane models. The first change took place in January 1976, when laminated window glass became available as a no-cost option. The 1.9 L "S" cam-in-head engine was replaced by the modernised 2.0 L (20S) in September 1977. The 20N became available in January 1978, and all models now also received electric windscreen washers. A 2.0 L diesel motor was added to the Ascona B range in 1978, mostly targeted at the BeNeLux countries and Italy, where local tax structures provided an incentive for diesel-powered automobiles - in 1979, 97% of diesels were exported, while 59% of petrol powered cars went in the export.

By the end of 1978 the 1.6 S engine was discontinued in Germany (where it was replaced by the 19N, with the same power but lower fuel consumption), but continued to be available in some markets in a somewhat down-tuned version with 70 PS (51 kW). In January 1979 the street legal version of the Ascona 400 with 2.4-liter engine (16 valves, 144 PS) appeared, followed a month later by the more prosaic 1.3 liter OHC engine. This largely replaced the old 1.2 liter pushrod unit which dated back to 1962, but production continued in dwindling numbers into 1980 for some export markets.

In September 1979 the Ascona received a minor facelift, including plastic bumpers and a grey front grille with a larger mesh. The 2.0 E model with a Bosch L-Jetronic electronic fuel injection arrived in January 1980, after having been first installed in the Manta and Rekord models. In addition to a front spoiler, the 2.0 E equipped Ascona also received an upgraded clutch and transmission, differential, radiator, and other parts shared with the sporting Manta GT/E. In January 1981 the Ascona underwent its last changes, when adjustments made to the 16N and 20N engines. The 1.9 N and 2.0 N engines were discontinued in the German market, while the 1.6 N engine was now only available coupled with an automatic transmission.

Over 1.2 million Ascona B units were produced worldwide until August 1981. The two millionth Ascona was an Ascona B, built in April 1980, and the one millionth Ascona sold in Germany was registered in July of that same year.

Engines
  • 1.2 N – 1196 cc, 55 PS (40 kW)
  • 1.2 S – 1196 cc, 60 PS (44 kW) - 58 PS in Sweden and Switzerland (S12S)
  • 1.3 N – 1297 cc, 60 PS (44 kW)
  • 1.3 S – 1297 cc, 75 PS (55 kW)
  • 1.6 N – 1584 cc, 60 PS (44 kW)
  • 1.6 S – 1584 cc, 75 PS (55 kW), later 70 PS (51 kW)
  • 1.9 N – 1897 cc, 75 PS (55 kW)
  • 1.9 S – 1897 cc, 90 PS (66 kW)
  • 2.0 N – 1979 cc, 90 PS (66 kW)
  • 2.0 S – 1979 cc, 100 PS (74 kW)
  • 2.0 E – 1979 cc, 110 PS (81 kW)
  • 2.4 E – 2420 cc, 144 PS (106 kW)
  • 2.0 D – 1998 cc, 58 PS (43 kW)

Export models Edit

In the United Kingdom, the Vauxhall Cavalier badge was used on both saloonand coupé models from late 1975, which came out of the same factory inBelgium — the first Vauxhall to be built abroad. The front ends were different, featuring Vauxhall's trademark "droop snoot", as designed by Wayne Cherry.

South Africa

In South Africa there was a locally assembled version called the Chevrolet Ascona, identical in many respects to the four-door Opel Ascona B. The Ascona came with a locally built 1.3 liter inline-four from the Vauxhall Viva. A preceding upmarket version with the Vauxhall Cavalier's longer front end was sold as theChevrolet Chevair, equipped with bigger engines of Chevrolet origins. The Ascona was launched in July 1978, and replaced the Vauxhall-based Chevrolet 1300/1900-series. It was available in De Luxe or S trim, with the S receiving a sportier treatment with a three-spoke steering wheel, tartan seat inserts, and Rostyle rims.

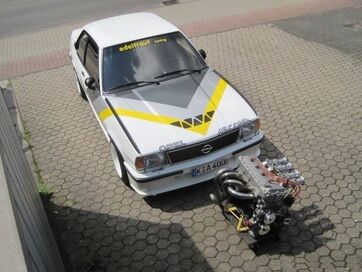

Ascona 400 rally car Edit

first shown at the 1979 Feankfurt Motor Show, the Ascona 400 was a homologation special  sold only to make it eligible for rallying's Group 4 category. The Ascona 400s were built at General Motors' plant in Antwerp. The 1980 world champion Walter Röhrl took the rally car to victory and won theWorld Rally Championship drivers' title in the 1982 season.

The car was developed by Opel alongside the Manta B 400 model which consisted of the same changes. Irmscher and Cosworth were hired as partners for the project, Cosworth to deliver a 16 valve double cam crossflow head for the engine, and Irmscher for the exterior and interior styling. Cosworth delivered the heads to Opel and Opel soon discovered a major mistake. The plan was to use the 2.0 litre engine block but this did not produce enough power. Time was running out and Opel badly needed to do something. Opel took the 2.0E block and gave it an overbore, installed larger pistons, different connecting-rods, and installed the crankshaft of their 2.3 litre diesel CIH style engine. The result was a 2.4 litre engine. The 2.4 litre engine gave rise to some massive power outputs using the 16 valve head. The street versions of the 400 therefore came with 144 hp (107 kW) engines, using the Bosch fuel injection of the Manta GSi and GT/E series. However, in race trim they were delivered putting out 230 hp (172 kW), which could be improved further to 340 hp (254 kW), while still using normally aspirated engine components.

Irmscher delivered the rally trim for the exterior. Large and widened wings, light weight hood, front wings, rear boot lid and doors were also installed.

By 1984, the Audi Quattro appeared more powerful than ever and the Ascona 400 was rendered obsolete. But the Ascona 400 still has some remarkable records. The Ascona 400 was the last rear wheel drive rally car to win the drivers' world championship, ensuring its place in motorsports history.

14963210 1191479214243812 4504857264361120837 n

WRC Victories Edit

{| class="wikitable"

!No. !Event !Season !Driver !Co-driver !Car |- |1 |30th International Swedish Rally |1980 |Anders Kulläng |Bruno Berglund |Opel Ascona 400 |- |2 |50éme Rallye Automobile de Monte Carlo |1982 |Walter Röhrl |Christian Geistdörfer |Opel Ascona 400 |- |3 |14ème Rallye Côte d'Ivoire |1982 |Walter Röhrl |Christian Geistdörfer |Opel Ascona 400 |- |4 |31st Marlboro Safari Rally |1983 |Ari Vatanen |Terry Harryman |Opel Ascona 400 |}


First Generation/Origins (1970–1975)
Edit

In the fall of 1970, Opel presented its completely new vehicle range in Rüsselsheim (internal project code 1.450). The Opel Manta coupé was launched on September 9, followed by the Opel Ascona on October 28 in two and four-door sedan forms, plus a three-door station wagon, called the Caravan or Voyage. These models were positioned between the existing Opel Kadett and the Opel Rekord.

The Ascona was developed as a replacement to the Kadett, but late in the car's development Opel chose to instead develop a new, smaller Kadett and instead positioned the Ascona as a competitor to the successful Ford mid-sizedTaunus range. The Opel Ascona A stayed in production until 1975. By that time, almost 692,000 vehicles of the first series had been produced.

The range featured petrol engines from 1.2 L to 1.9 L, with power between 60 PS (44 kW) and 90 PS (66 kW). The 1.2 L had an overhead valve (OHV) head, while the 1.6 L and 1.9 L featured the Opel Cam-in-head engine (CIH). The CIH was a compromise effort, with the camshaft mounted next to the valves rather than above them. All used a single barrel carburetor. Even with this simple design, the Ascona 1.9 SR had a successful career in motorsports, with Walter Röhrl winning the European Rally Championship in 1974. Tuner Steinmetzdeveloped a special version of the Ascona SR, with two single-barrel Solex carburettors, lifting power to 125 PS (92 kW).

From 1971–75, the 1.9-liter Ascona was exported to the United States as the "Opel 1900" sold through Buick-Opel dealerships. All three body styles were offered at first, but the four-door sedan was dropped after 1972. In 1974, heavy rubber-clad impact bumpers were added in response to federal regulations. All Opels sold in the US in 1975 were equipped with Bosch L-Jetronic fuel injection, which was not available on the European versions. The fuel injection was added because of the stricter emissions requirements that were in force that year. Due to the unfavorable DMark/U.S. Dollar exchange rate, after 1975, all Opels in Buick showrooms were replaced by Japanese-built Isuzu Geminimodels wearing Opel badges.

Engines
1.2 S – 1,196 cc, 60 PS (44 kW)
1.6 N – 1,584 cc, 60–68 PS (44–50 kW)
1.6 S – 1,584 cc, 75–80 PS (55–59 kW)
1.9 S – 1,897 cc, 88–90 PS (65–66 kW)


WorldwideEdit

If the vehicle is sold in other markets worldwide, then this is the section to mention that information. Also, mention if the <MODEL> goes by another name in these other markets.

Design quirks and odditiesEdit

Refer to any pop-culture tidbits about the vehicle in this section.

AwardsEdit

List out notable awards that the model has recieved while in production. Boldface the company or orgainization that gives out the award, and Italicize the name of the award.
